Photron

Photron is a leading global manufacturer of high-speed digital imaging systems, trusted by researchers for reliability in challenging applications. Their products include cameras that record up to 12,500 frames per second with megapixel resolution, four-megapixel (2K x 2K) cameras, high-definition 1080p for broadcast imaging, and ruggedized systems with miniature camera heads for automotive safety testing.

9 products

Products

Photron

High-Speed CamerasUltra High-Speed Cameras

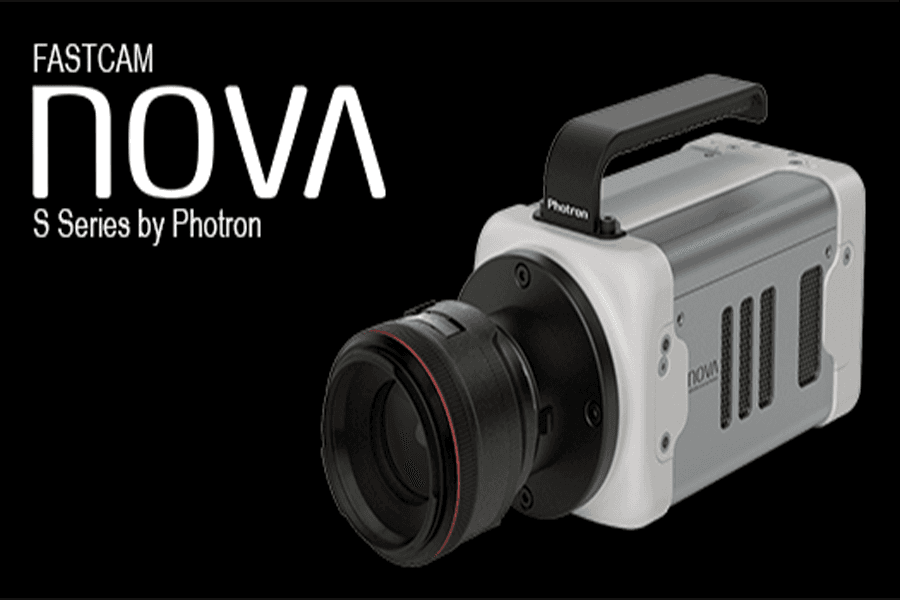

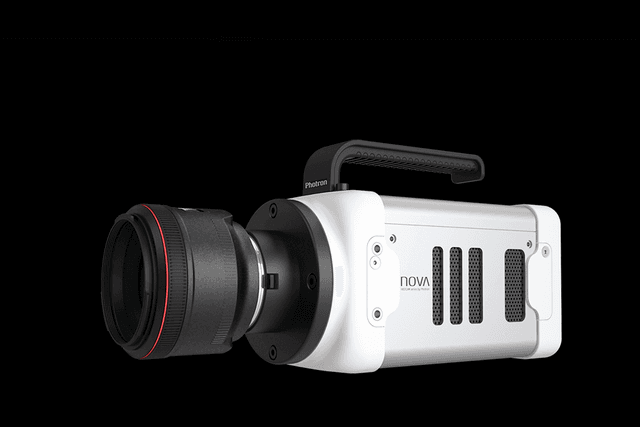

FASTCAM Nova S

The FASTCAM NOVA brings together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications. Available in four different models, the FASTCAM NOVA offers 12-bit image recording rates up to 16,000frames per second (fps) at megapixel image resolution, and shutter speeds to 0.2μs. Recording rates to1,100,000fps are available at reduced image resolution. All of this available from a camera that is rugged, compact, lightweight and provides the best light sensitivity in its class.

View Details

Photron

High-Speed CamerasUltra High-Speed Cameras

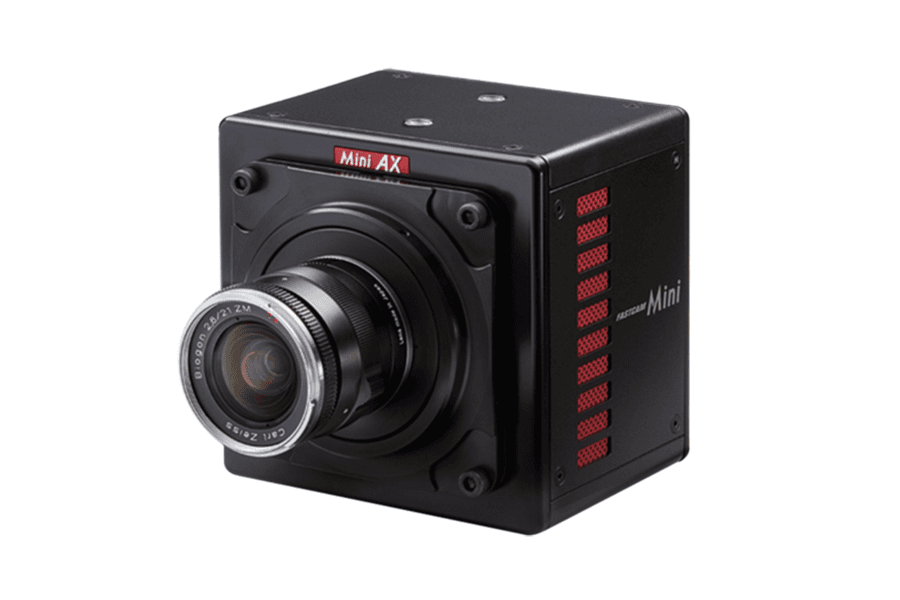

FASTCAM Mini AX

The FASTCAM Mini AX is Photron’s highest performance model within the FASTCAM Mini series of high-speed cameras. The Mini AX delivers exceptional light sensitivity, excellent image quality and flexible region of interest (ROI) features for customers who do not require the ultimate frame rate performance of the FASTCAM SA-X2 and SA-Z, but would benefit from the same high-end camera image sensor features.

View Details

Photron

High-Speed Cameras

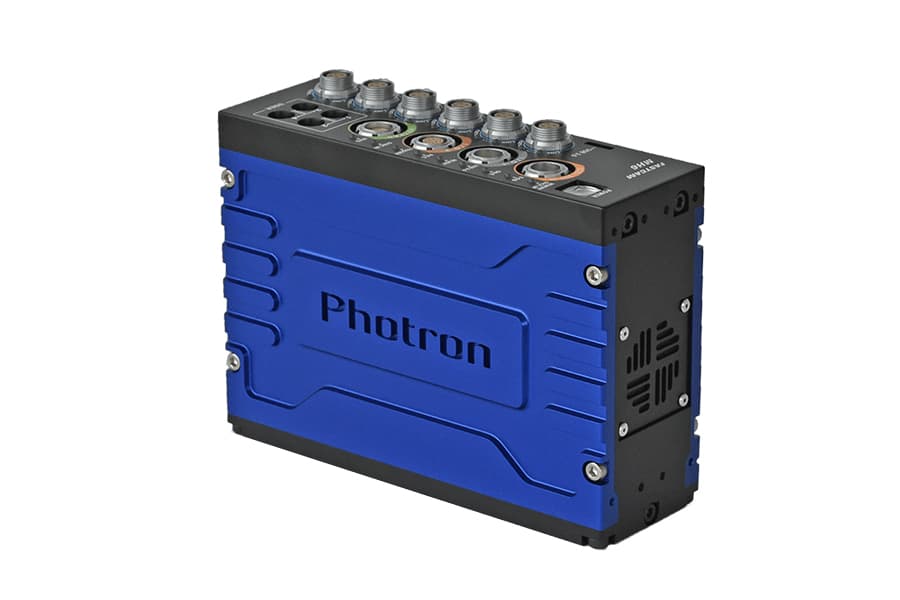

FASTCAM MH6

The FASTCAM MH6 system supports up to six compact HD camera heads (35.4mm x 35mm x 35.4mm, weight 100g), or 12 miniature ST camera heads (15mm x 15mm x 15mm, weight 15g). A combination of HD and ST camera heads may each be connected via a 10m cable to the main processor, facilitating a wide range of camera head viewing angles and mounting positions within the vehicle. All camera heads are extremely rugged and have been operationally tested to 160G. Each MH6 camera head, regardless of type (HD or ST), provides outstanding image quality and industry leading light sensitivity of ISO 5,000 color and 12,500 monochrome. HD camera heads capture images with 1080 full HD resolution at 1,000fps and are compatible with readily available 1-inch C-mount ruggedized lenses. ST camera heads capture images with 800 x 600 (SVGA) resolution at 1,000fps and utilize M10.5 ruggedized lenses.

View Details

Photron

High-Speed CamerasUltra High-Speed Cameras

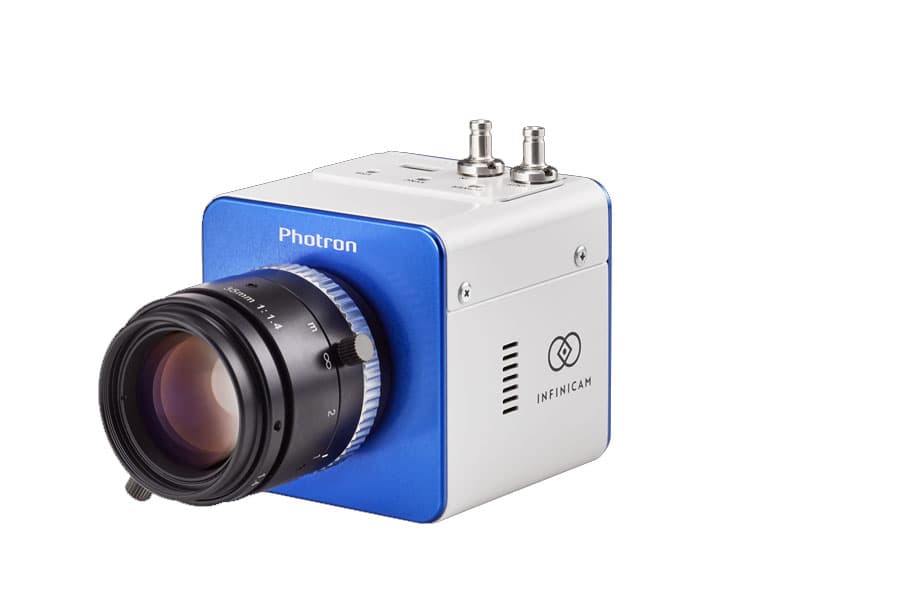

Infinicam

INFINICAM is a high-speed streaming camera capable of capturing and transferring 1.2-megapixel of image data to PC memory at 1,000fps via USB 3.1. The latest version of the SDK supports Python, a common language in the computer vision/machine vision field, in addition to C++. This makes real-time image processing with INFINICAM possible with easy intuitive programming. INIFINICAM is also compatible with StreamPix and TroublePix Software from Norpix to provide a comprehensive off-the-shelf high-speed camera solution.

View Details

Photron

High-Speed CamerasUltra High-Speed Cameras

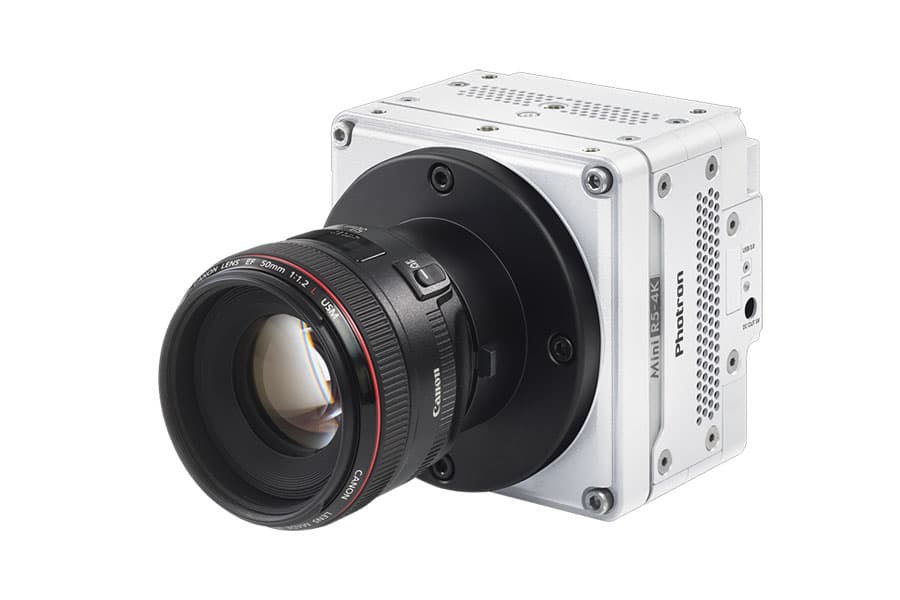

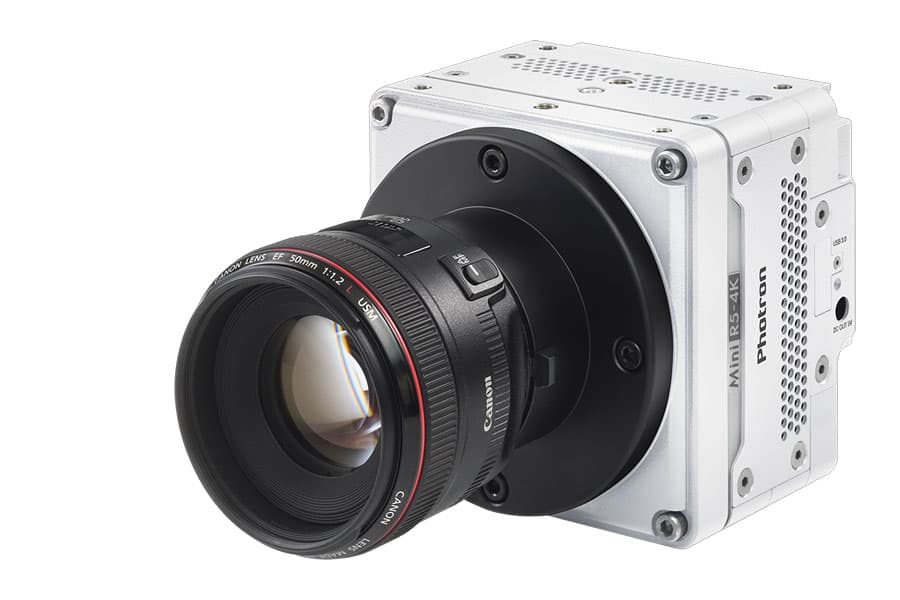

FASTCAM Mini R

This new generation of the popular FASTCAM Mini series with a proprietary 4K/ UHD sensor is ideally suited for applications where observation of a large spatial area without loss of image quality is required – applications such as automotive safety testing (car-to-car, pedestrian testing, barrier/ roll-over testing and curtain airbag), fluid dynamics (PIV, microfluidics) material testing (DIC, drop testing) are some of the main applications for this product.

View Details

Photron

High-Speed CamerasUltra High-Speed Cameras

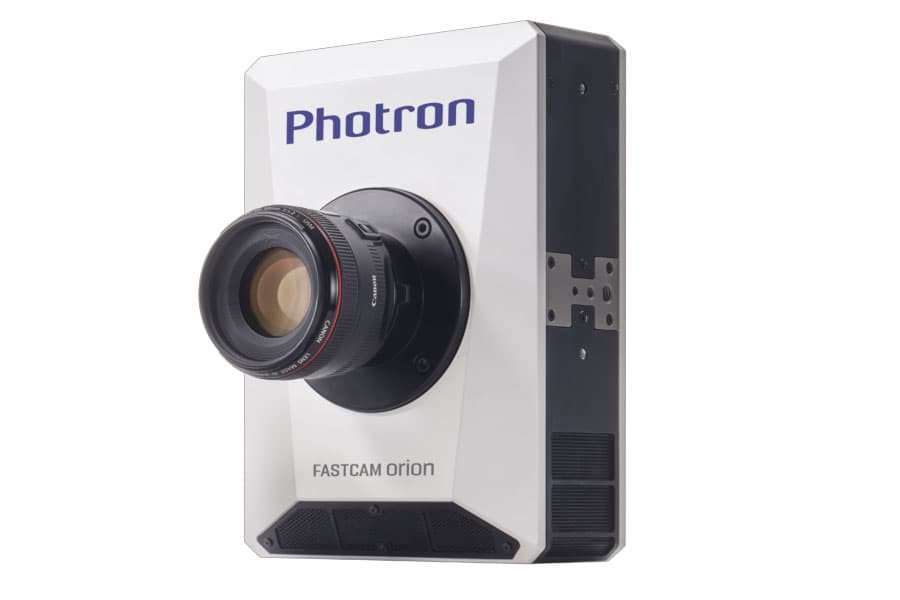

FASTCAM Orion

Introducing the FASTCAM Orion S40. Megapixel CMOS Image Sensor 1280 x 1024 pixels at 31,250fps 1024 x 1024 pixels at 37,500fps Backside Illuminated Sensor (BSI) 12-bit monochrome 36-bit color

View Details

Photron

High-Speed CamerasUltra High-Speed Cameras

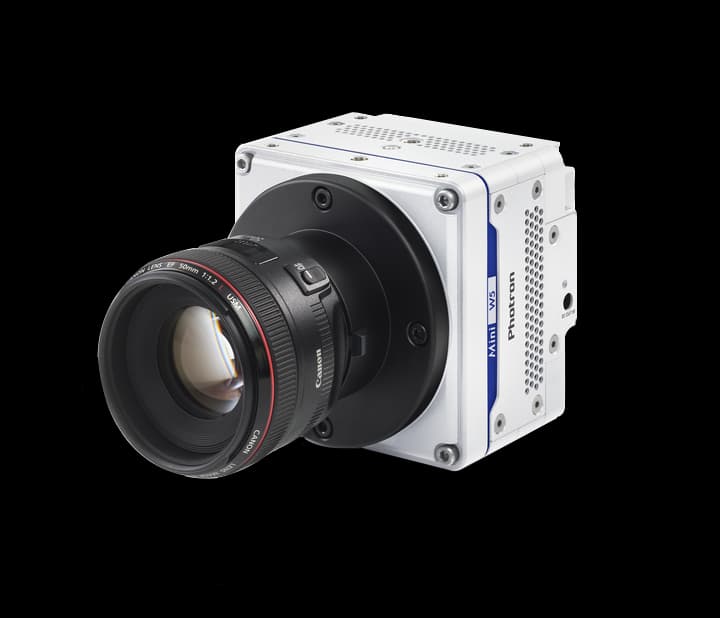

FASTCAM Mini W Series

The Photron FASTCAM Mini W Series delivers 2.4-megapixel resolution, global electronic shutter performance, and exceptional low-light sensitivity in a compact, rugged camera body designed for demanding scientific and industrial environments. FASTCAM Mini W5 – Ultra-High-Speed, High-Sensitivity Imaging 2.4 MP | Up to 5,000 fps (full resolution) | Up to 200,000 fps (reduced resolution) The FASTCAM Mini W5 captures 5,000 fps at full 2048 × 1152 resolution and up to 200,000 fps at reduced resolution. Its large 13-micron pixels provide class-leading light sensitivity for low-light experiments. FASTCAM Mini W2 – High-Sensitivity High-Speed Imaging 2.4 MP | Up to 2,000 fps (full resolution) | Up to 150,000 fps (reduced resolution) The FASTCAM Mini W2 offers the same sensor and image quality as the Mini W5, optimized for applications requiring lower maximum frame rates at excellent sensitivity.

View Details

Photron

Ultra High-Speed Cameras

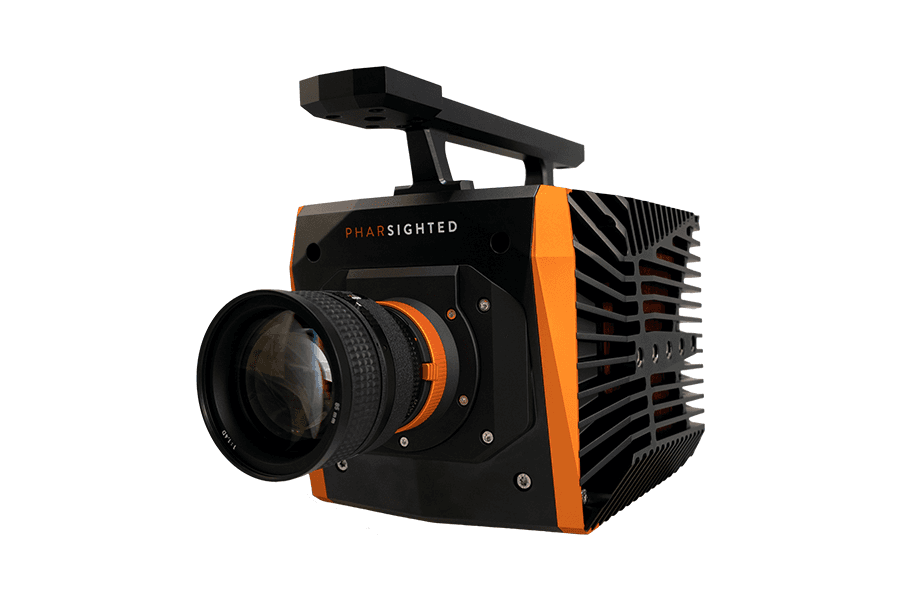

Pharsighted E9 (Distributed by Photron)

Introducing the Pharsighted E9•80S and E9•100S—trailblazers in ultra high-speed photography! These revolutionary full-frame, backside-illuminated cameras offer incredible light sensitivity and exceptional speed, making them perfect for capturing stunning visuals at over 100,000 fps. Get ready to elevate your imaging experience!

View Details

Photron

High-Speed Cameras

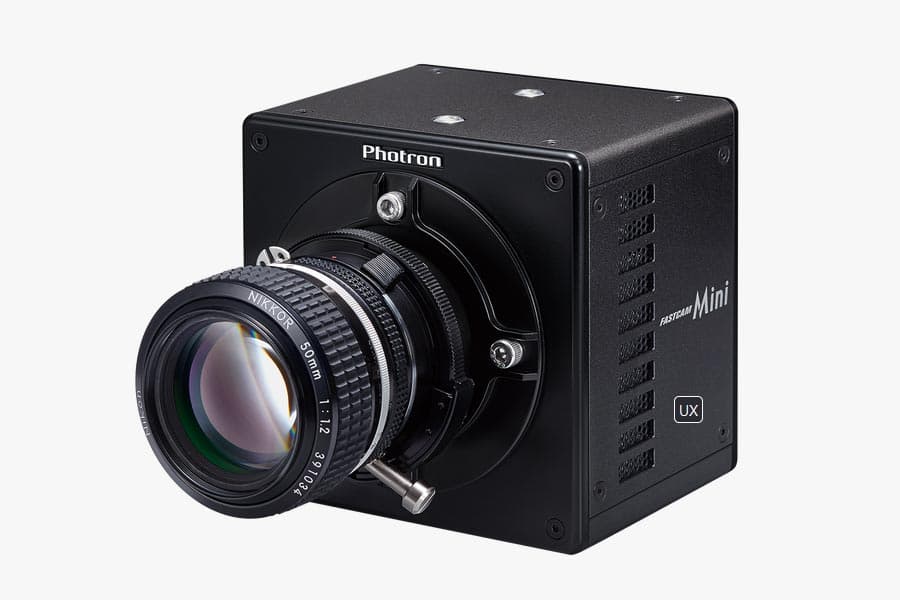

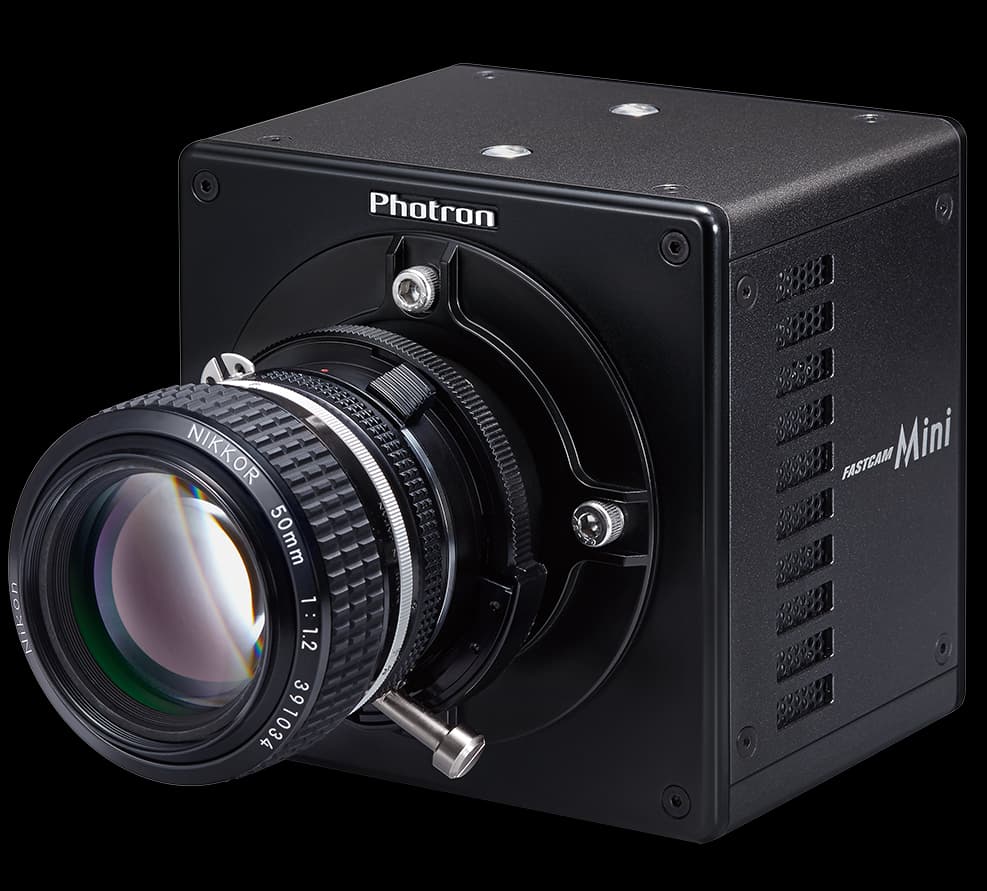

Model UX50 / UX100

For use with a wide range of general scientific and industrial applications the Photron Mini UX high-speed camera provides outstanding imaging performance at a very attractive price performance ratio. 1.3-Megapixel CMOS Image Sensor 1280 x 1024 pixels at 2,000fps (Mini UX50) 1280 x 800 pixels at 2,500fps (Mini UX50) 1280 x 1024 pixels at 4,000fps (Mini UX100) 1280 x 1000 pixels at 5,000fps (Mini UX100) 1280 x 800 pixels at 6,250fps (Mini UX100) Class Leading Light Sensitivity ISO 10,000 Monochrome ISO 5,000 Color

View Details
