Application

Sports & Motion Analysis

Motion capture and biomechanical performance analysis for athletes and researchers

Overview

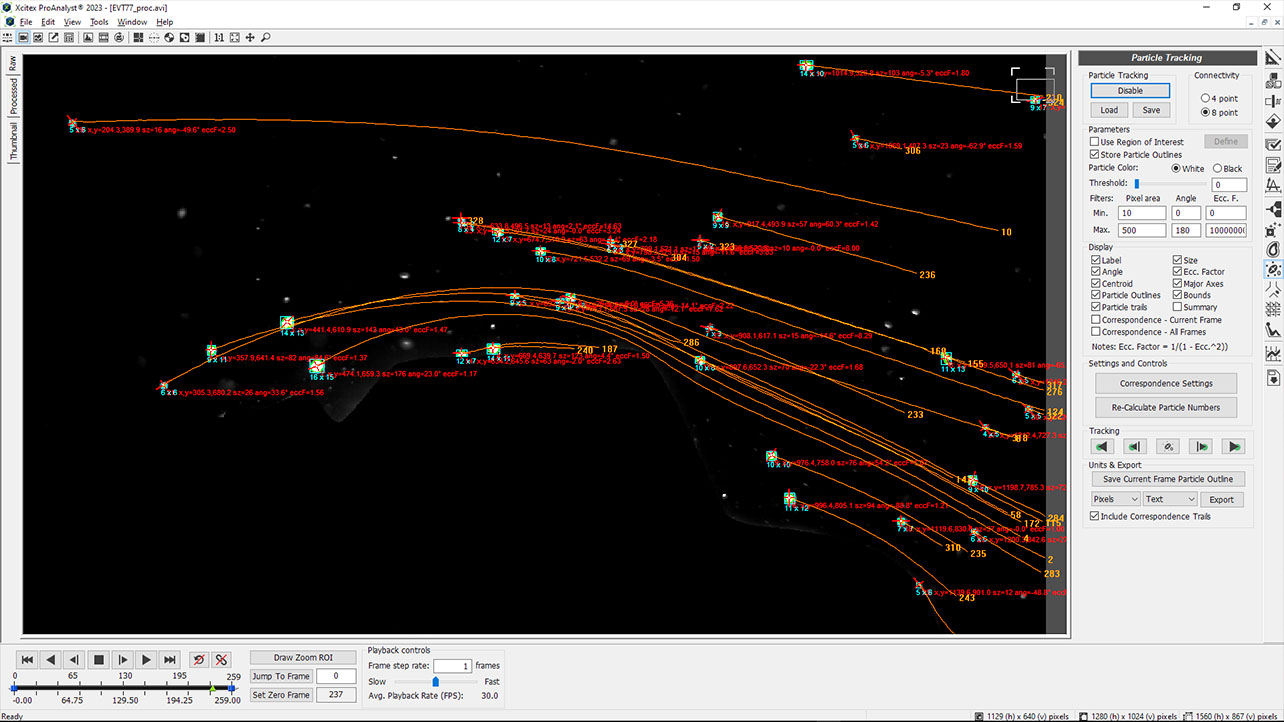

High-speed imaging transforms motion analysis by revealing mechanics that the human eye simply cannot follow. Whether quantifying the biomechanics of an athletic movement, tracking ballistic trajectories, or producing frame-by-frame replays for broadcast, our cameras and software deliver the resolution and frame rates that matter. ProAnalyst motion-analysis software turns high-speed footage into precise velocity, acceleration, and trajectory data — while systems like Volucam enable synchronized multi-camera capture for volumetric or 3D analysis.

Recommended for This Application

Photron

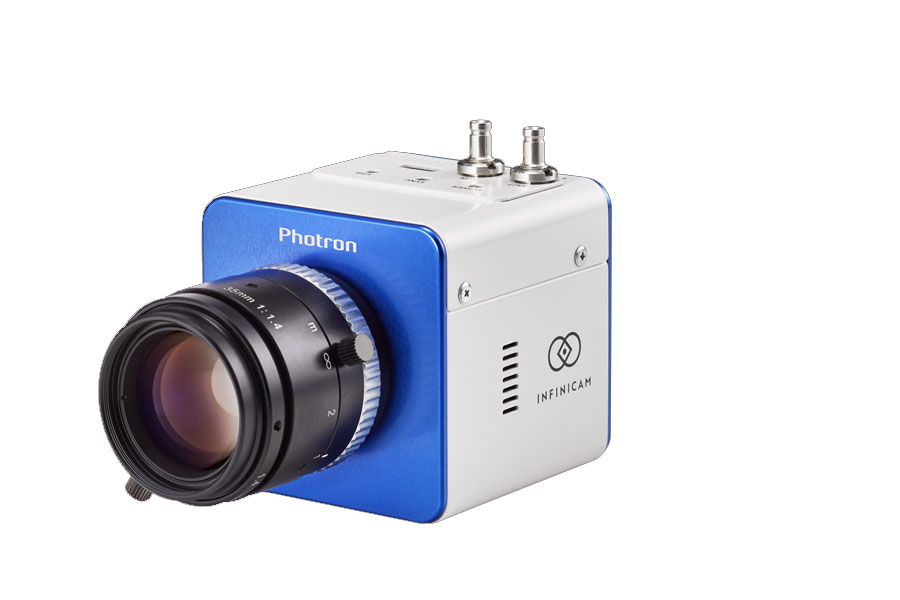

Infinicam

IO Industries

Volucam

Xcitex

ProAnalyst

Talk to an Expert

Also Relevant

Photron

High-Speed CamerasUltra High-Speed Cameras

FASTCAM Mini AX

The FASTCAM Mini AX is Photron’s highest performance model within the FASTCAM Mini series of high-speed cameras. The Mini AX delivers exceptional light sensitivity, excellent image quality and flexible region of interest (ROI) features for customers who do not require the ultimate frame rate performance of the FASTCAM SA-X2 and SA-Z, but would benefit from the same high-end camera image sensor features.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

J-PRI

With its 2560x1920 pixels and up to 2000 frames per second this high resolution high speed camera captures the smallest details The J-PRI is a unique platform of cameras with a stunning 5Mpixel sensor and up to 2000 fps recording speed. The camera is available in different speed and resolution grades. The solid built high speed camera comes with all accessories, a powerful software all packed in a solid case. The camera is ideally suited for use in many demanding scientific and industrial applications as well as offboard automotive crash tests.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

Promon Streamer

The compact footprint makes the Streamer a perfect system for permanent installation on a production line. Beside the high speed recording feature and the long time recording capabilities, the built-in I/Os allow control from PLC – so it’s ready when you need it. The versatile system is available in different variations such as built-in camera, with an additional external camera, or two external cameras. The control software is based on Imaging Studio v4, all features are easy configurable by the software.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

Promon U series

The PROMON U series are very competitive entry level high speed camera systems recording directly to PC via USB3. PROMON U cameras connect directly to PC via USB3 without need for additional cabling. The camera comes with the powerful Imaging Studio V4 software for piloting the camera, recording, playback and export of sequences. Via the software the user can set the system to record into PC DRAM for seconds or setup a video stream directly to hard disk for minutes or even hours. Depending on the model PROMON U cameras offer stunning data rates of e.g. PROMON U1000 with 1920 x 1080 up to 167 frames/sec or the PROMON U800 with 640 x 480 up to 800 frames/sec. The software allows parameterization of different operation modes ranging from taking a quick shot of a single event, capturing intermittent events to a complete 24/7 recording. Do not miss an event anymore!

View Details

AOS Technologies AG

Long Recording Cameras

PROMON 2000

Unlike traditional high-speed cameras limited by internal memory size, the PROMON 2000 transcends these limitations. Over a high-speed 10 Gigabit Ethernet connection, this camera can stream at 1000fps in 8-bit mode with a resolution of 1920 x 1080 pixels. When a high dynamic range is required, the 12-bit sensor captures recordings at speeds of up to 300fps. All of these remarkable features seamlessly integrate into a comprehensive software package, ensuring that both recording and post-processing are straightforward and user-friendly.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

PROMON 2000 HSR

PROMON 2000 HSR | High-Speed Recorder with 1920x1080 @ 1000 fps & Up to 8TB Storage Full HD at 1000 fps: Capture every detail with precision. Direct-to-Non-Volatile Memory: No need for downloads - start your next recording instantly. Maximize Efficiency: Eliminate downtime and keep your workflow smooth. PROMON 2000 HSR High Speed Camera System

View Details

Nila

Lighting & Laser Illumination

Nila Boxer

The Boxer gives you the flexibility you need for a full range of lighting applications. With a power draw of only 200W, flicker-free operation, and powerful output, the Boxer is an indispensable part of any lighting package.

View Details

Nila

Lighting & Laser Illumination

Nila Varsa

Our Varsa light kits strike the perfect balance between light output and portability. With an output comparable to that of a 400 watt HMI fixture, the Varsa uses only 75 watts and weighs a meager 10 pounds. It's ready to go when you are with instant-on, AC/DC power options, and beautiful, flicker-free light, all in a super-durable, weatherproof, aluminum housing. There’s only one best.

View Details

Shimadzu

High-Speed CamerasUltra High-Speed Cameras

HPV-X2

Medical science and engineering have made dramatic progress thanks to visualization technology. Examples include the invention of microscopes capable of enlarged observations of phenomena occurring in the microscopic domain, invisible to the human eye, X-ray inspection systems, which enable the observation of images utilizing light at imperceptible wavelengths, and infrared cameras. Our eyes are incapable of capturing phenomena occurring at times shorter than 50 to 100 ms. As a result, high-speed video cameras have become necessary in order to record phenomena occurring at intervals that cannot be seen with the human eye, and then replay them at a slower rate so that they can be visualized. As the standard tool for visualizing ultra high-speed domains, the Hyper Vision high-speed video camera contributes to our understanding of ultra high-speed phenomena in a variety of fields.

View Details

Shimadzu

High-Speed CamerasUltra High-Speed Cameras

HPV-X3

Shimadzu Hyper Vision HPV-X3: Capture What Others Miss The Shimadzu Hyper Vision HPV-X3 sets a new benchmark in ultra-high-speed imaging, capturing the fastest events with unmatched clarity and precision. Designed for demanding applications in aerospace, defense, and scientific research, the HPV-X3 delivers frame rates of up to 20 million frames per second (fps) without compromising on image quality. Boasting an impressive 628x480 pixels and 25 nsec exposure times at 20 MHz, this camera delivers unrivaled performance.

View Details

IO Industries

Machine Vision Cameras

Flare CX

The Flare™ series is a family of high-throughput video cameras featuring high-resolution and high frame rate image sensors and a reliable CoaXPress industrial video interface. Available CMOS image sensors include the CMV12000 12.6MP sensor and the CMV50000 47.5MP sensor. All sensors use global shutter technology, with high-sensitivity and low-noise pixel designs. Monochrome and color models are available to suit a variety of applications in industrial and scientific imaging, high speed motion analysis, wide area observation, as well as virtual reality and special effects.

View Details

IO Industries

Machine Vision Cameras

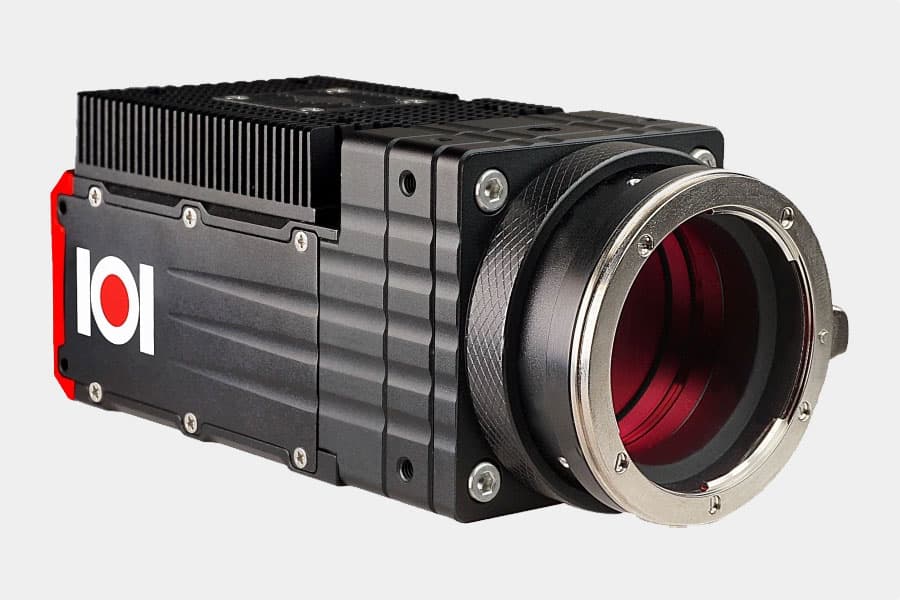

Redwood Cams

The Redwood™ series is a family of high-throughput industrial video cameras designed with some of the fastest high-resolution CMOS image sensors available today. The 120C335 models use ams CMV12000 12.6MP sensors, the 447X52 models feature use XGS45000 44.7MP sensors, the 52G872 and 210G230 models use Gpixel GSPRINT4521 21MP sensors and the 654G71 models use Gpixel GMAX3265 65MP sensors. All these sensors feature global shutter technology, with high-sensitivity and low-noise pixel designs. Both monochrome and color camera models are available to suit a variety of applications in industrial and scientific imaging, wide area observation, as well as virtual reality and special effects.

View Details

Need a solution for Sports & Motion Analysis?

Our team matches your application to the exact camera, lens, and software stack it needs.
