Application

Aerospace and Ballistics

High-speed analysis of projectiles and impact dynamics

Overview

High-speed imaging has been used in various applications by engineers in the defense industries, from crash testing to ballistics, high-speed cameras are used to capture and study these events. Advanced software is used to immediately process the video and calculate necessary projectile information to allow for quick and repetitive testing. Efficient characterization of military target infrared signature plays an important role in any countermeasure defense program for the design of unmanned monitoring systems capable of ranging and tracking different targets as well as performing automatic detection and recognition of potential threats. Furthermore, airborne hyperspectral infrared imaging can be for defense purposes use to identify and quantify gases on the ground from a safe distance. Featured Products: Photron and Telops.

Recommended for This Application

Photron

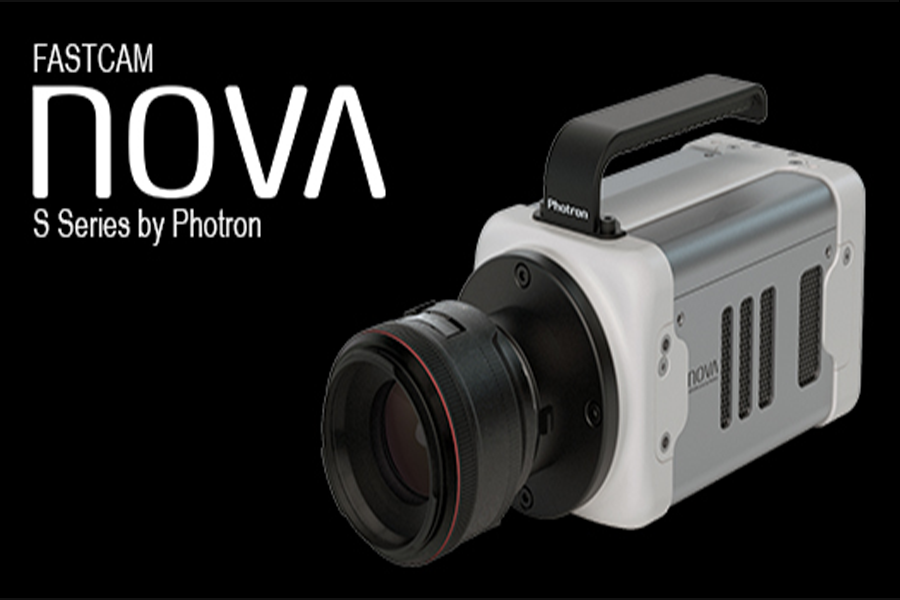

FASTCAM Nova S

Photron

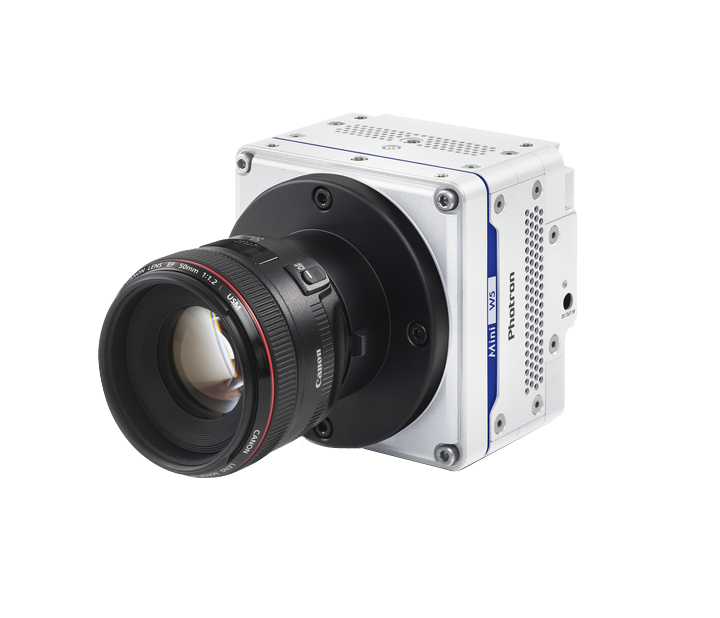

FASTCAM Mini W Series

Photron

Pharsighted E9 (Distributed by Photron)

AOS Technologies AG

L-VIT Platinum

Telops

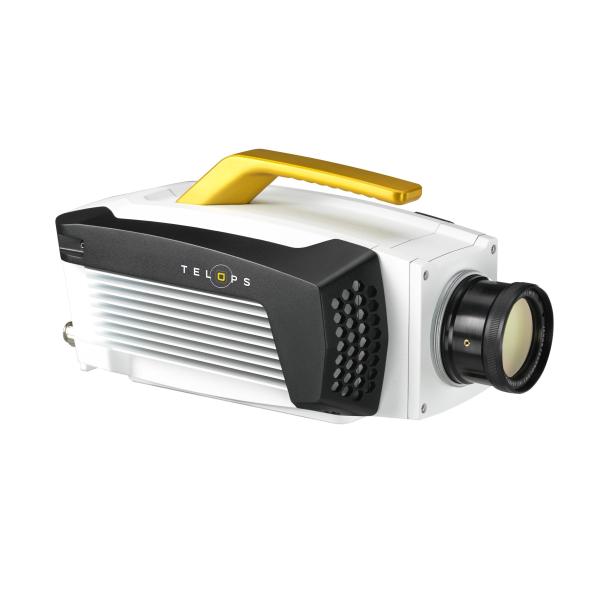

Fast M3K

Shimadzu

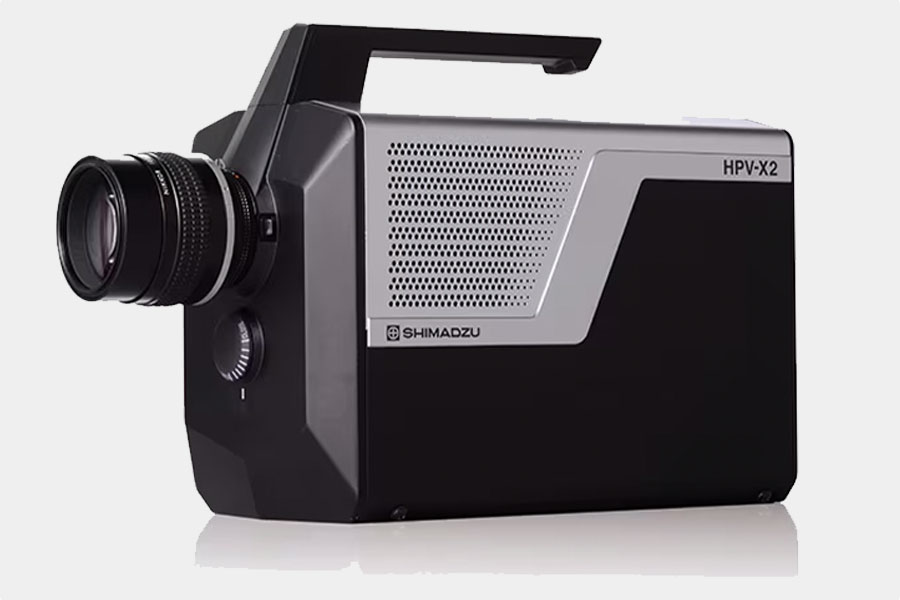

HPV-X2

Talk to an Expert

Also Relevant

Photron

High-Speed CamerasUltra High-Speed Cameras

FASTCAM Mini AX

The FASTCAM Mini AX is Photron’s highest performance model within the FASTCAM Mini series of high-speed cameras. The Mini AX delivers exceptional light sensitivity, excellent image quality and flexible region of interest (ROI) features for customers who do not require the ultimate frame rate performance of the FASTCAM SA-X2 and SA-Z, but would benefit from the same high-end camera image sensor features.

View Details

Photron

High-Speed Cameras

FASTCAM MH6

The FASTCAM MH6 system supports up to six compact HD camera heads (35.4mm x 35mm x 35.4mm, weight 100g), or 12 miniature ST camera heads (15mm x 15mm x 15mm, weight 15g). A combination of HD and ST camera heads may each be connected via a 10m cable to the main processor, facilitating a wide range of camera head viewing angles and mounting positions within the vehicle. All camera heads are extremely rugged and have been operationally tested to 160G. Each MH6 camera head, regardless of type (HD or ST), provides outstanding image quality and industry leading light sensitivity of ISO 5,000 color and 12,500 monochrome. HD camera heads capture images with 1080 full HD resolution at 1,000fps and are compatible with readily available 1-inch C-mount ruggedized lenses. ST camera heads capture images with 800 x 600 (SVGA) resolution at 1,000fps and utilize M10.5 ruggedized lenses.

View Details

Correlated Solutions

Digital Image Correlation (DIC)

VIC-3D HS

The VIC-3D™ HS Vibration Analysis DIC System by Correlated Solutions, Inc. is a new addition to the VIC-3D™ product line of measurement solutions. This Turn-Key High-Speed Digital Image Correlation system can measure full-field, three-axes displacements during vibration events. Since the acquisition time is very short, the system is capable of measuring operational deflection shapes during transient events as well as the impulse response to an impact. The system achieves resolution in the nanometer range and provides full-field three-axis displacement as well as strain data.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

L-PRI

With its 1920 x 1080 pixels and up to 2800 frames per second this high speed camera leaves no wish open in regards of resolution and framing speed. The different camera models are available with basic memory of 4GB and can expand up to 128GB. The L-PRI is a solid build high speed camera with a high light sensitive state of the art sensor.

View Details

AOS Technologies AG

High-Speed CamerasLong Recording Cameras

M-PRI

A modular high speed camera for budget critical applications. The M-PRI series starts from 1000 fps up to 4000 fps at full resolution. Different memory options for an exactly shaped high speed recording system to meet technical demands and budget.

View Details

Telops

Infrared / Hyperspectral Imaging

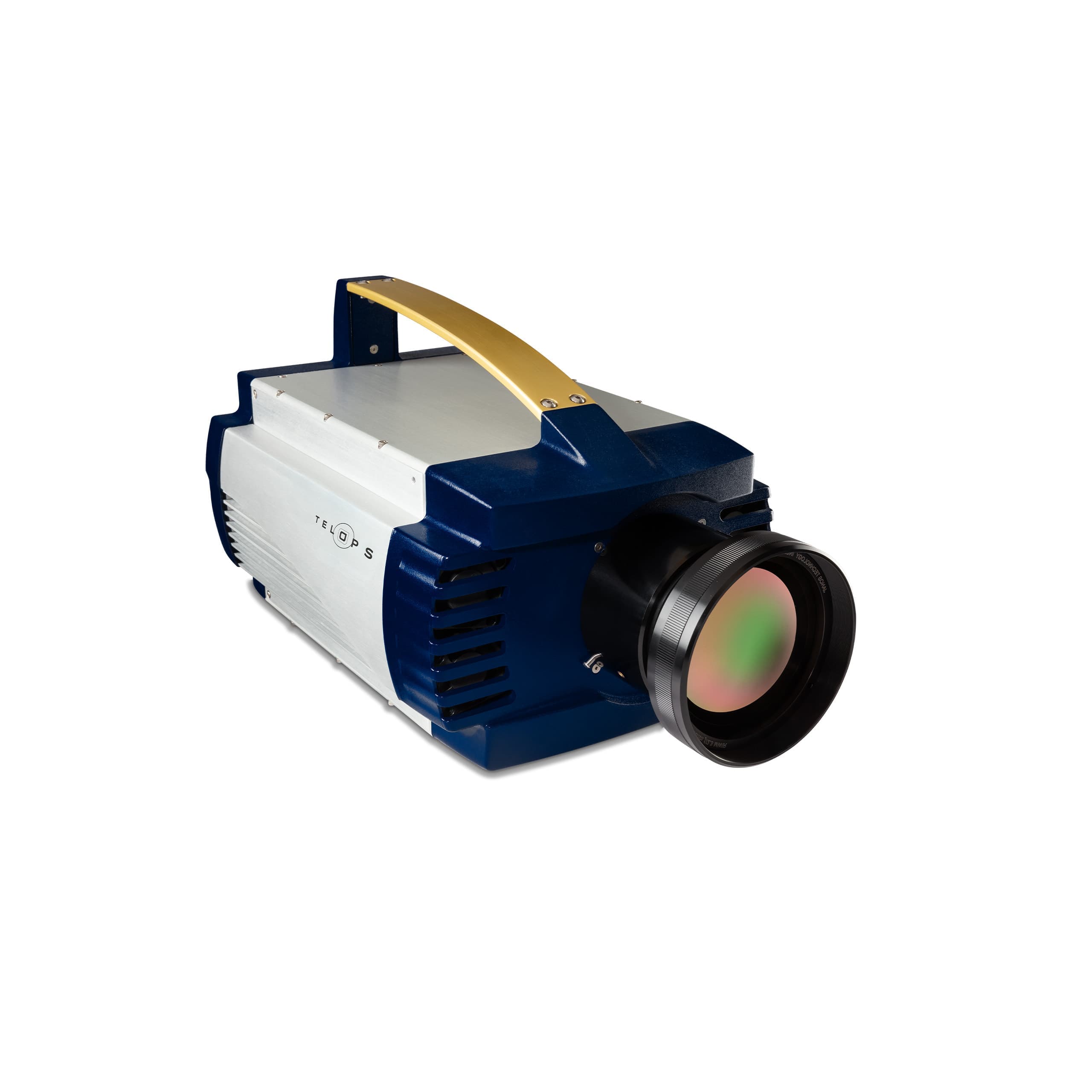

MS M3K

The Telops MS M3K is a high-speed multispectral mid-wave infrared (MWIR) camera. An 8-position fast-rotating filter wheel splits the scene into up to eight spectral bands for spectral-signature analysis, instead of a single broadband image. Built on a 320 x 256 InSb detector over the 1.5–5.4 um band, it reaches up to 3,100 fps full-frame and 100,000 fps in subwindow mode, with the wheel spinning up to 100 Hz per filter (up to 800 fps in synchronised mode). Ideal for combustion analysis, gas detection and other applications where material identity matters as much as temperature.

View Details

Cavitar

Lighting & Laser Illumination

Cavilux HF

We at Cavitar are here to bring you Value in Sight with our diode-laser based illumination systems and welding cameras that reveal your application and processes with the level of clarity and detail you have never seen before. We offer versatile products, systems and solutions for industrial visual process monitoring and R&D, as well as for scientific research, for integrators, OEM manufacturers, and end-users alike. In addition to our high-performance CAVILUX systems and Cavitar Welding Cameras, we also offer customized solutions.

View Details

IO Industries

Long Recording Cameras

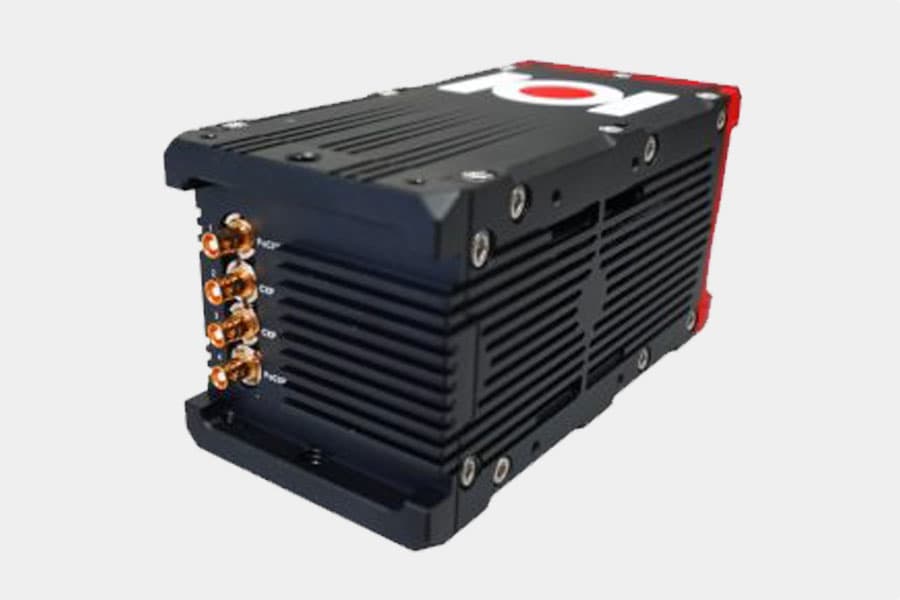

Rodeo DVR

Rodeo is an ultra-compact, rugged, video recorder, designed for RAW recording from high-performance video cameras. Rodeo is ideal for demanding video recording applications such as volumetric capture, 4D face/body scanning, test range recording and industrial trouble-shooting; and is an excellent choice for multi-camera setups. Rodeo features either a CoaXPress 2.0 or Camera Link video interface and reliably records long sequences of video from a broad range of computer vision and scientific cameras made by IO Industries and other camera manufacturers.

View Details

Xcitex

Analysis & Control Software

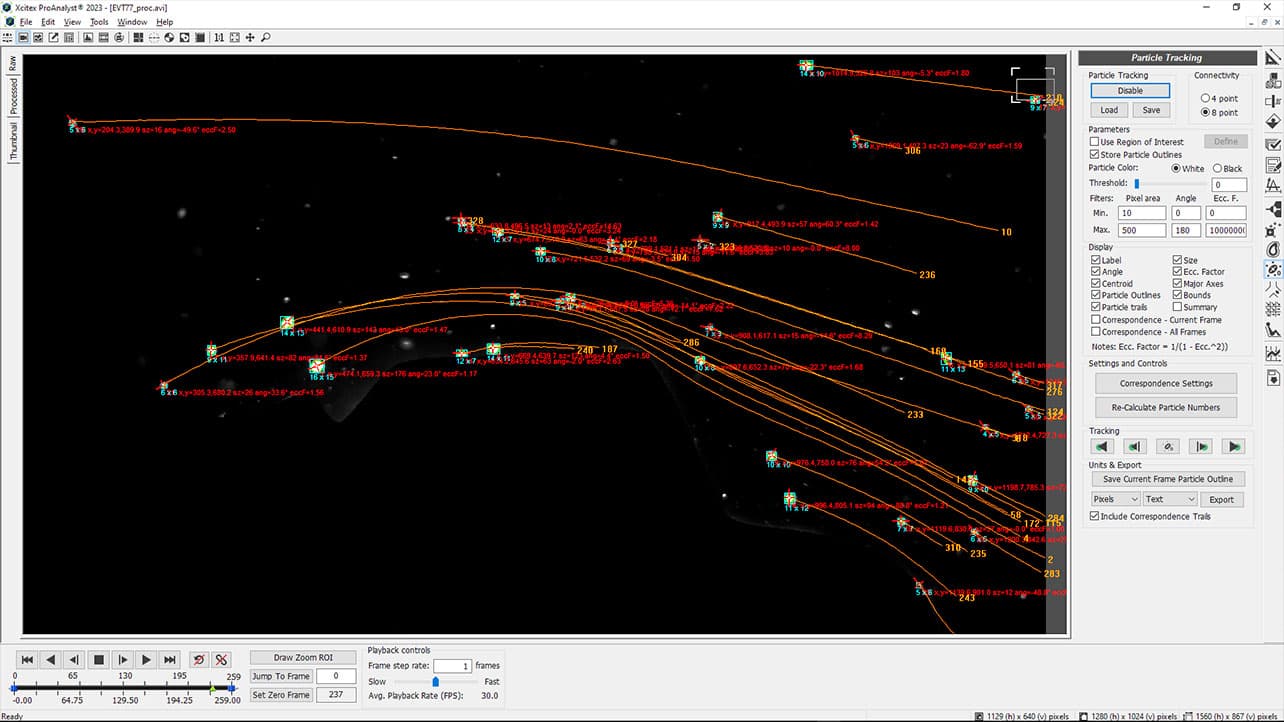

ProAnalyst

Calibrate scenes, process videos, track motion, and graph motion data with the award-winning ProAnalyst software. Track motion, instead of markers ProAnalyst 2023 is the newest, most powerful version of ProAnalyst yet, with 20+ analysis toolkits available. ProAnalyst 2023 gives you the tools you need to tackle any motion analysis application. Stabilize, calibrate, and process images to prepare for analysis Track features to measure motion quantities in 2-D and in 3‑D Compute angle and distance measurements from tracked features Graph motion data inside ProAnalyst and export to a variety of formats

View Details
