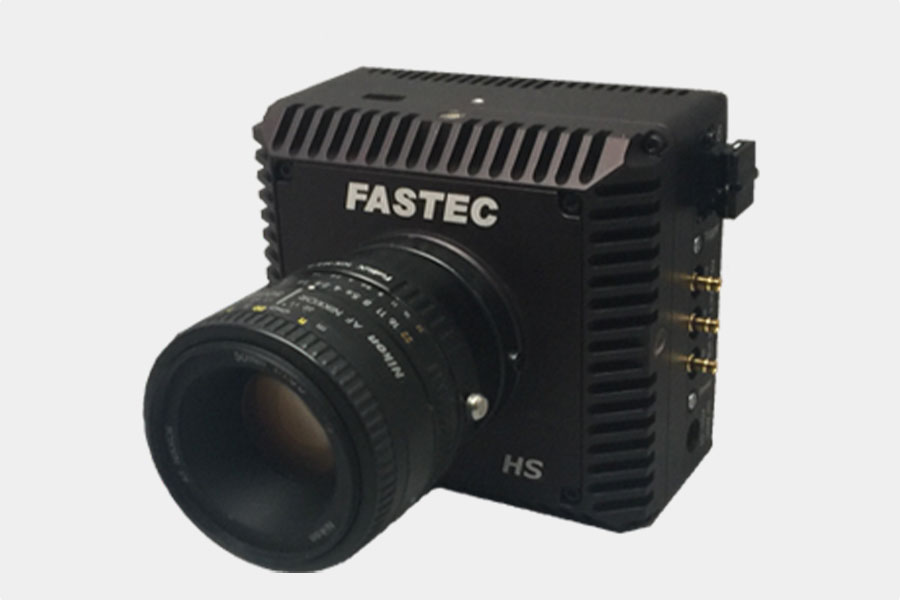

Fastec Imaging’s HS Series high-speed camera is designed with the serious researcher in mind. Image access as well as storage and retrieval have been rethought in order to maximize utility and reduce cycle times.

Proven 12-bit CMOS sensor on a new high-performance platform utilizing the Fastec
Camera Controller for unrivaled access to
captured images!

2560 x 2048 @ 253fps streaming to 1TB SSD
512 x 306 @ 5000fps
Up to 29,000fps at smaller resolutions



Datasheet: HSI – HS5 datasheet



Description

HS5

  • Advanced CMOS image sensors from 1.3 to 5MP
  • HS5: Quad HD (1440p) @ 350 frames per second (12 bits)
  • Configurable I/O ports for data capture, triggering, and sync
  • Excellent depth of field and high system magnification
  • Binning and sub-sampling on some models
  • Wide ISO range



Standard HS Camera Features

  • Camera controller eliminates the need for a dedicated PC
  • Built-in simple Web interface for control via browser on PC, tablet, or phone
  • Advanced application software with multi-camera controls and batch downloads
  • Accurate synchronization of multiple cameras, including TS, IL, and HiSpec
  • Multiple built-in high-speed mass storage interfaces
  • Proprietary high-speed fiber optic interface using COTS cabling
  • Flexible triggering via software, hardware, images or timed event
  • Software lens control for MFT (micro four thirds) lenses

Optional Camera Features

  • Up to 32GB internal memory
  • Internal SSD up to 2TB
  • SSD streaming modes for extended recordings
